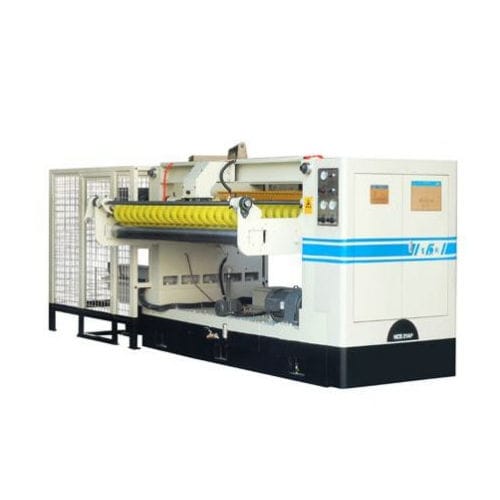

Crosscut cutting machine NCS20servo-drivenfor industrial applicationshigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- servo-driven
- Applications
- for industrial applications
- Other characteristics
- high-precision, pneumatic, with conveyor, crosscut
- Cutting speed
100,000 mm/min, 200,000 mm/min
(65.617 in/s, 131.234 in/s)- Overall length
2,380 mm, 2,580 mm, 2,780 mm, 2,980 mm, 3,180 mm
(94 in, 102 in, 109 in, 117 in, 125 in)- Overall width
1,400 mm, 1,600 mm, 1,800 mm, 2,000 mm, 2,200 mm
(55 in, 63 in, 71 in, 79 in, 87 in)- Height
1,250 mm
(49 in)- Weight
6 t, 7 t, 8 t, 6,500 t, 7,500 t
(6.61 us ton, 7.72 us ton, 8.82 us ton, 14,330.05 us ton, 16,534.67 us ton)
Description
• CUTTING LENGTH: 500MM-9999MM, CUTTING ACCURACY±1MM
• UP TO 999 JOB SIZE CAN BE PRESET, AUTO CHANGE JOB SIZE WITHOUT MACHINE STOP, CONNECTED WITH THE COMPUTER TO MAKE PRODUCTION MANAGEMENT EASY
• ALL DRIVE GEAR MADE OF HIGH QUALITY ALLOY STEEL, WHICH ARE HEAT TREATED AND EXACTITUDE PROCESSED, HIGH DRIVE ACCURACY AND LONG LIFE
• CIRCULATING LUBRICATION TO INSURE LUBRICATE AND ALSO HELP TO CLEAN AND COOL
• PAPER ENTERING AND OUT ARE SEPARATED, EACH HAVE THEIR FREQUENCY CONVERT MOTOR TO CONTROL SPEED, SYNCHRONIZED DRIVEN, STABLE AND LOW NOISE
• DOUBLE-ROW ROUND WHEELS ARE USED AT ENTRANCE TO REDUCE THE CUTTING ERRORS CAUSED BY DITHERING OF PAPER BOARD.
• EXIT AND SENDING PLATFORM USE ROUND WHEELS AND CONVEYER BELT, WHICH MAKE PAPER BOARD EJECTION STEADY.
• ROUND WHEELS DEVICE PNEUMATIC CONTROLLED, SPECIAL DESIGN, EASY TO OPERATE
• PEDESTAL AND WHEEL BOX MADE OF GREY CAST IRON, GOOD STEEL AND GOOD SHAKE-RESISTANCE
• MOTOR
MAIN MOTOR: 37KW/55KW
OIL PUMP MOTOR: 0.2KW
CONVEY MOTOR: 2.2KW
