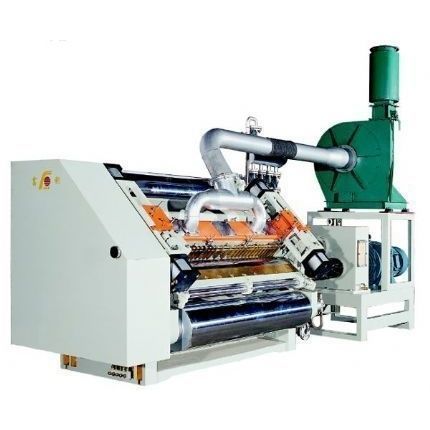

Corrugator SF12N

• FINGERLESS VACUUM SUCTION • DIAMETER OF CORRUGATING ROLLS: 280MM • DIAMETER OF GLUE ROLL: 215MM； • EQUIPPED WITH PREHEAT ROLLS FOR LINER & MEDIUM • LIFTING OF UPPER CORRUGATING ROLL, PRESSURE ROLL AND GLUE ROLL PNEUMATIC CONTROLLED • BEARINGS OF CORRUGATING ROLLS AND PRESSURE ROLLS USE HIGH TEMPERATURE LUBRICATE GREASE • GLUE DIVIDING DEVICE MOTORIZED, EASY TO ADJUST BREADTH • POWER OF MAIN MOTOR: 18.5KW (WIDTH 1200-1400MM)/ 22KW (WIDTH 1600-1800MM) • POWER OF SUCTION BLOWER: 7.5KW(WIDTH 1200-1400MM)/ 11KW (WIDTH 1600-1800MM) • INDEPENDENT GEAR BOX, GIMBAL AXIS, OIL IMMERSED TYPE LUBRICATING TO REDUCE NOISE, KEEP RUNNING STABLE • MAIN CONTROLLER AND LEFT-RIGHT MOVING OF RELATED ROLL STAND LINKAGE CONTROLLED
