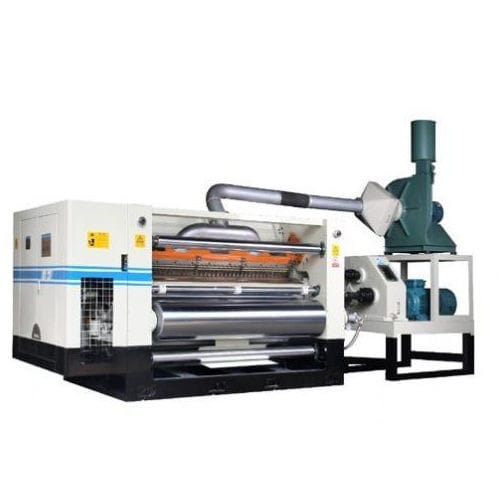

Corrugator SF20NA

• FINGERLESS VACUUM SUCTION • UPPER CORRUGATING ROLL DIA314MM, LOWER CORRUGATING ROLL DIAMETER 326MM. UPPER CORRUGATING ROLLS AND LOWER CORRUGATING ROLLS CAN BE INSTALLED AND REMOVE AS A UNIT, EASY TO BE CHANGED • GLUE ROLL DIAMETER 254MM, STATION CAN BE REMOVED AS A UNIT. • PLC AUTO GLUE MIX SYSTEM • EQUIPPED WITH PRE-HEATER ROLL FOR LINER AND STEAM SPRAY DEVICE FOR MEDIUM • LIFTING OF UPPER CORRUGATING ROLL AND PRESSURE ROLL, MOVING OF GLUE DEVICE PNEUMATIC CONTROLLED • BEARINGS OF CORRUGATING ROLLS AND PRESSURE ROLLS USE HIGH TEMPERATURE LUBRICATE GREASE • INDEPENDENT GEAR BOX, GIMBAL AXIS, OIL IMMERSED TYPE LUBRICATING TO REDUCE NOISE, KEEP RUNNING STABLE • WITH FREQUENCY CONVERT MOTOR TO MAKE STEPLESS SPEED REGULATION AND SYNCHRONIZED LINKAGE WITH FOLLOWING MACHINES. FREQUENCY CONVERT MOTOR IS FROM INTERNATIONAL FAMOUS BRAND WITH RELIABLE PERFORMANCE • POWER OF MAIN MOTOR: 22KW (WIDTH 1200-1400MM)/ 30KW (WIDTH 1600-2000MM) • POWER OF SUCTION BLOWER: 11KW(WIDTH 1200-2000MM) • MAIN CONTROLLER AND LEFT-RIGHT MOVING OF RELATED ROLL STAND LINKAGE CONTROLLED
