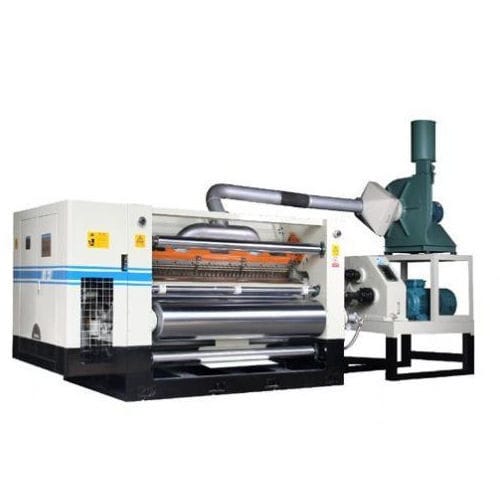

Corrugator SF22NA

• FINGERLESS VACUUM SUCTION • CORRUGATING ROLL DIAMETER 380MM. UPPER CORRUGATING ROLLS AND LOWER CORRUGATING ROLLS CAN BE INSTALLED AND REMOVE AS A UNIT, EASY TO BE CHANGED • GLUE ROLL DIAMETER 302MM, STATION CAN BE REMOVED AS A UNIT. • PLC AUTO GLUE MIX SYSTEM • LIFTING OF UPPER CORRUGATING ROLL AND PRESSURE ROLL, MOVING OF GLUE DEVICE PNEUMATIC CONTROLLED • EQUIPPED WITH PRE-HEATER ROLL BOTH FOR LINER AND MEDIUM, AND ALSO STEAM SPRAY DEVICE FOR MEDIUM • INDEPENDENT GEAR BOX, GIMBAL AXIS, OIL IMMERSED TYPE LUBRICATING TO REDUCE NOISE, KEEP RUNNING STABLE • WITH FREQUENCY CONVERT MOTOR TO MAKE STEPLESS SPEED REGULATION AND SYNCHRONIZED LINKAGE WITH FOLLOWING MACHINES. FREQUENCY CONVERT MOTOR IS FROM INTERNATIONAL FAMOUS BRAND WITH RELIABLE PERFORMANCE • POWER OF MAIN MOTOR: 30KW (WIDTH 1400-2000MM)/ 37KW (WIDTH >2200MM) • POWER OF SUCTION BLOWER: 11KW(WIDTH 1400-2000MM)/ 15KW (WIDTH >2200MM) • MAIN CONTROLLER AND LEFT-RIGHT MOVING OF RELATED ROLL STAND LINKAGE CONTROLLED
