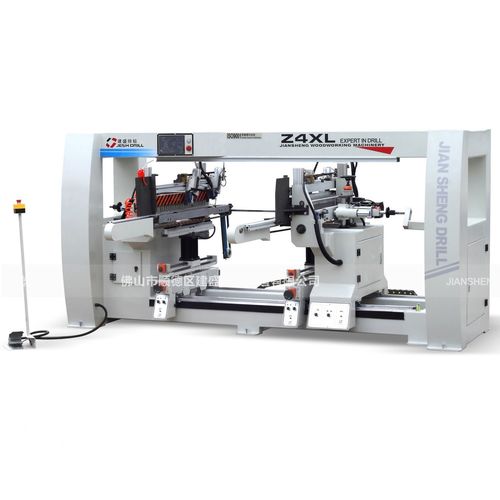

PLC-controlled boring machine Z4XL
for drillingfor woodwith automatic feeder

PLC-controlled boring machine - Z4XL - Foshan Shunde Jiansheng Machine Manufacturing Co., Ltd. - for drilling / for wood / with automatic feeder
PLC-controlled boring machine - Z4XL - Foshan Shunde Jiansheng Machine Manufacturing Co., Ltd. - for drilling / for wood / with automatic feeder
PLC-controlled boring machine - Z4XL - Foshan Shunde Jiansheng Machine Manufacturing Co., Ltd. - for drilling / for wood / with automatic feeder - image - 2
PLC-controlled boring machine - Z4XL - Foshan Shunde Jiansheng Machine Manufacturing Co., Ltd. - for drilling / for wood / with automatic feeder - image - 3
PLC-controlled boring machine - Z4XL - Foshan Shunde Jiansheng Machine Manufacturing Co., Ltd. - for drilling / for wood / with automatic feeder - image - 4
PLC-controlled boring machine - Z4XL - Foshan Shunde Jiansheng Machine Manufacturing Co., Ltd. - for drilling / for wood / with automatic feeder - image - 5
PLC-controlled boring machine - Z4XL - Foshan Shunde Jiansheng Machine Manufacturing Co., Ltd. - for drilling / for wood / with automatic feeder - image - 6
Add to favorites
Compare this product


Characteristics

Control type
PLC-controlled
Applications
for drilling, for wood
Other characteristics
with automatic feeder
Power

12.6 kW
(17.13123 hp)

Description

Max. Center Distance Between Holes : L×B=1500mm×672mm Min. Center Distance Between Holes : L*B=220mm×32mm Max. Processing Length : 1500mm Min. Processing Length : 220mm Plate Thickness : 12-40mm Total Number Of Spindles : 88 pcs Max.Drilling Dia. : 35mm(single bit) 13mm(multi bits) Max.Drilling Depth : 50mm Installation Dia. Of Drill Bit Shaft : 10mm Knife Installation Length : 57mm/70mm Spindle Speed : 2840rpm Qty. Of Horizontal Left&Right Drilling Rows : 2 rows Air Pressure : 0.5-0.6mpa Motor Voltage : 380V,50Hz Total Power : 6.5 kw Net Weight : about 1500kg Overall Dimensions : 3400×2250×1650mm Qty. Of Vertical Up Drilling Rows : 2 rows Single Plate Feeding Speed : 13-16 pcs/min Double Plate Feeding Speed : 20-26 pcs/min Single Plate Processing Width : 60-630mm Double Plates Processing Width : 60-320mm
