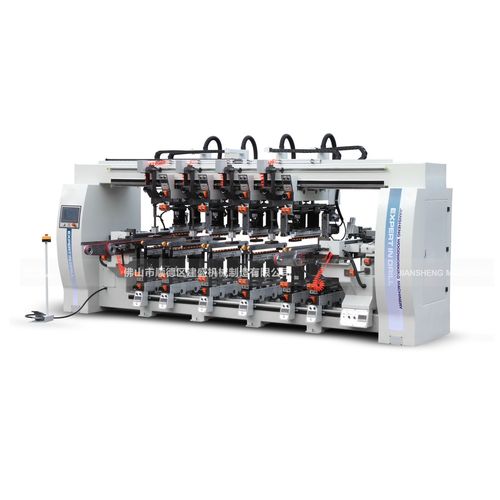

PLC-controlled boring machine Z16XLverticalfor drillingfor wood
Add to favorites
Compare this product
Characteristics
- Control type
- PLC-controlled
- Spindle orientation
- vertical
- Applications
- for drilling, for wood
- Other characteristics
- with automatic feeder
- Spindle diameter
Max.: 35 mm
(1 in)Min.: 0 mm
(0 in)- Power
40.1 kW
(54.52081 hp)
Description
Woodworking sixteen lines boring machine
Max drilling diameter : 35mm
Max drilling depth : 40mm
Number of drill lines : 2+6+4+4=16
Total number of spindles :11*20+22*2+2*4=272
Max working length : 2500mm
Max center distance between holes : 672mm
Min center distance between holes : 400mm
Spindle speed : 2840rpm
Total power : 40.1kw
Overall dimension : 2200*2000*4800mm
Weight : 4800kg
