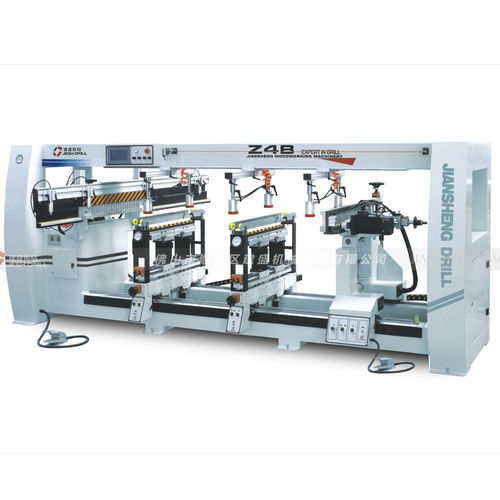

PLC-controlled boring machine Z4Bfor drillingfor wood
Add to favorites
Compare this product
Characteristics
- Control type
- PLC-controlled
- Applications
- for drilling, for wood
- Spindle diameter
Max.: 35 mm
(1 in)Min.: 0 mm
(0 in)- Power
9 kW
(12.23659 hp)
Description
Woodworking four lines boring machine
Max drilling Diameter : 35mm(single bit) ; 13mm(multi bits)
Max drilling depth : 60mm
Total number of spindles : 11*4+22*2=88
Installation pitch of drill bit : 10mm
Max center distance between holes : L * W=672mm
Min center distance between holes : L * W=130mm*32mm
Spindle speed : 2840rpm
Total power : 9kw
Overall dimension : 4050*2500*1630mm
Weight : 1900kg
