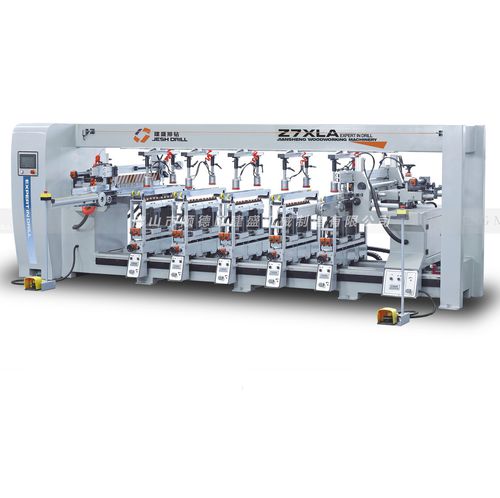

PLC-controlled boring machine Z7XLfor drillingfor woodwith automatic feeder
Add to favorites
Compare this product
Characteristics
- Control type
- PLC-controlled
- Applications
- for drilling, for wood
- Other characteristics
- with automatic feeder
- Spindle diameter
Max.: 35 mm
(1 in)Min.: 0 mm
(0 in)- Power
16.1 kW
(21.8899 hp)
Description
Woodworking seven lines auto feeding boring machine
Max drilling diameter : 35mm (single bit) ; 13mm (multi bits)
Max drilling depth : 60mm
Total number of spindles : 22*2+11*10=154
Installation pitch of drill bit : 10mm
Max center distance between holes : L * W =2500mm*672mm
Min center distance between holes : L * W= 300mm * 32mm
Spindle speed : 2840rpm
Total power : 16.1kw
Overall dimension : 5000*2250*1650mm
Weight : 2850kg
