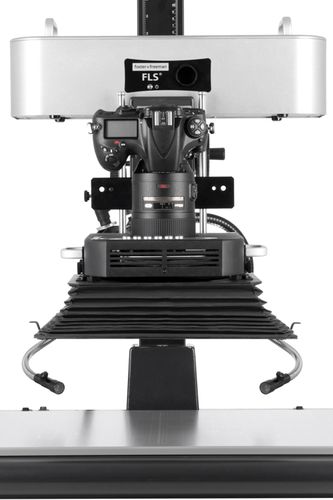

Imaging system DCS®5

DCS 5 is a comprehensive imaging system for the detection, capture, and enhancement of almost any type of fingerprint on any surface or background to ensure that maximum detail is revealed. Not only does the DCS 5 high-resolution 36.3MP camera fitted with application-specific macro lenses produce images of exceptional quality, advanced digital enhancement, applied simply, maximizes print detail to improve the value of evidence. Precise wavebands of illumination from UV through the visible to IR are provided to improve the visualization of every type of fingerprint whether it be latent, contaminated, or chemically treated. Fluorescence Imaging Many latent fingerprint treatments such as Ardrox, DFO, BY40 and fluorescent powders fluoresce under specific wavelengths of light. Using the DCS 5 multi-wavelength ring light an operator is able to select the optimum wavelength to generate the maximum intensity of fluorescence for each type of treatment. Infrared Imaging Interfering backgrounds may be suppressed appearing white as they reflect IR whereas some chemical treatments such as Physical Developer and certain powders absorb IR and appear black. Foster + Freeman’s new fingerprint dusting powder ‘fpNatural 1’ fluoresces brightly in the infrared when illuminated with a red light. Its application has the advantage of eliminating interference from most backgrounds which rarely fluoresce at this wavelength. Reflected UV Imaging Many surfaces such as glass and plastics absorb UV and appear black, which improves the visibility of both treated and untreated latent prints which often reflect UV. Images can then be significantly enhanced using the DCS5 software.
