Digital video microscope DVM

inspection

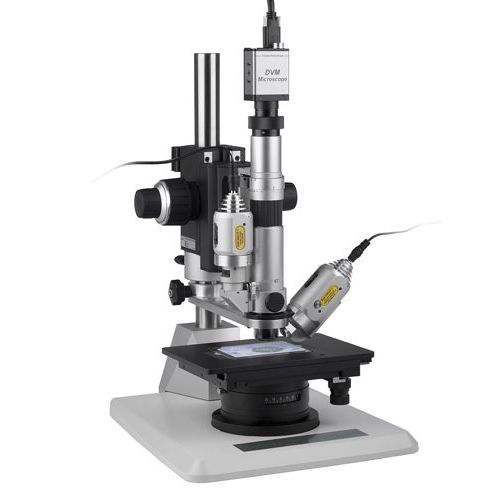

DIGITAL VIDEO MICROSCOPE FOR THE EXAMINATION OF MICROSCOPIC SECURITY TAGGANTS Microscopic, traceable, and virtually indestructible; taggants are fast becoming an integral part of the high-security document printing process. Using the Foster + Freeman DVM it is possible to detect and examine the latest generation of micro-taggants incorporated into inks and coatings on passports, ID cards, cheques, bank giros, travel tickets and other security documents. Comprising a high specification microscope, CCD color camera, two high intensity LED light sources (White and UV), darkfield ring light and a transmitted white light XY stage, the DVM microscope can be used as a PC driven standalone instrument or integrated with a Foster+Freeman VSC system to create a complete document examination workstation. Locate & Visualise Taggants in security documents and commonly counterfeited items Examine in microscopic detail taggants smaller than 20 microns Integrate with VSC Suite to provide document examination facilities x35 to x7000 magnification dependent upon choice of objective 3 modes of illumination Co-axial, darkfield ring light, and rotating side light.
