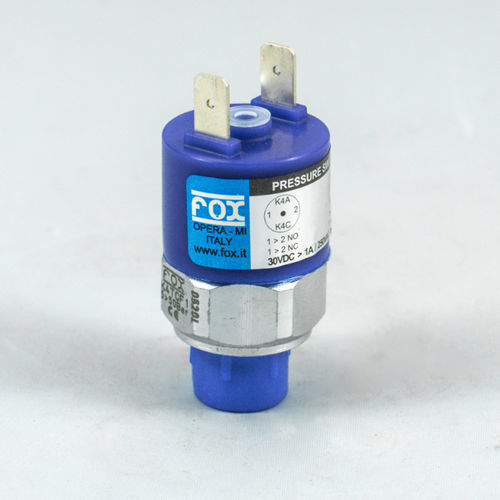

Electromechanical pressure switch K4

IP54for hydraulic applicationsadjustable

Working temperature: -25°C ÷ +85°C Switching frequency: 90 cycles/min Setting point: adjustable through a central screw Switching accuracy: ± 5% of end of scale at 20°C Fixed hysteresis value: - membrane execution ~ 10% of end of scale at 20°C - piston execution ~ 20% of end of scale at 20°C - Y execution ~ 25% of end of scale at 20°C Weight: 0,06 Kg Mechanical life: 106 cycles at 70bar (1000 psi) at 20°C Electric Features: - Maximum load: 0.5 A at 250 Volt AC, 0.15 A at 110 Volt DC - Simple contact (NO or NC) Warranty: see dedicated page Spare parts: see dedicated page Also available: - Special max pressure - Special electrical connection - Special value of hysteresis - CU-TR for Russian market - UL-CSA for electric part only - Electric protection according to DIN 40050, IP54 with P1 protection cap - Separator in stainless steel, carbon steel or plastic (<10 bar) for corrosive and/or high percentage of solid particles
