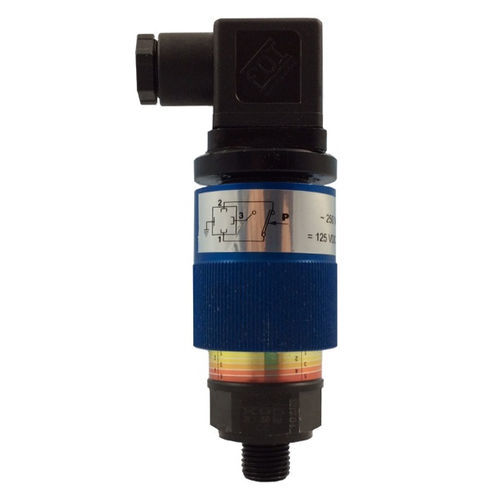

Electromechanical pressure switch K9 series

ATEXIP65for hydraulic applications

Switching frequency: 120 cycles/min Operating point: adjustable through external ring Switching accuracy: ±2% of end of scale at 20°C Fixed hysteresis: ~ 15% of end of scale at 20°C Weight: 0,4 Kg Electric Features: - Exchange contacts (Common, NO and NC) – SPDT - Electric connection according to DIN43650, M3 and M4 - Electric connection according to IEC60947-5-2, M12 - ATEX certification ATEX II 2G Ex db IIC T6 Gb IP65 (only for C2 execution, only with electrical cable of 2.5m and without any connectors) Body: 27 mm hexagonal in zinc-plated carbon steel Metal ring: in anodised aluminium Warranty: see dedicated page Spare parts: see dedicated page Also available: - Special max pressure - Special electrical connection - Special value of hysteresis - CU-TR for Russian market - UL-CSA for electric part only - Special length of cable till to 5 meters on request (only for C2 version) - Separator in stainless steel, carbon steel or plastic (<10 bar) for
