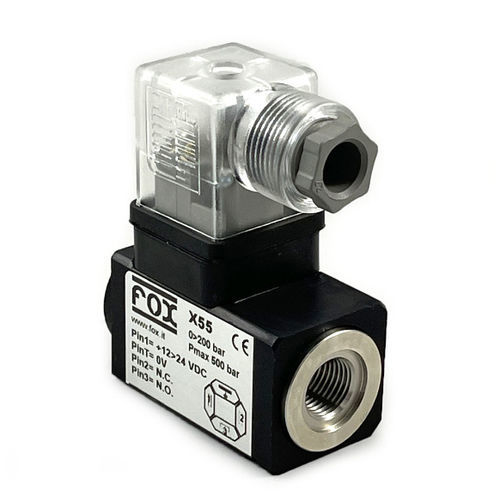

Electronic pressure switch X5 series

IP65adjustable

Switching frequency: 120 cycles/min Setting point: adjustable with 4 buttons Switching accuracy: ± 1,5% of end of scale at 20°C Hysteresis adjustable value: gap between 2% and 90% of the pre-set value Weight: 0,2 Kg Mechanical life: 5x106 cycles at 20°C Electric features: - Maximum load: 5 A - Exchange contacts (Common, NO and NC) – SPDT - Electric connection according to DIN43650, M3 and M4 - Electric connection according to IEC60947-5-2, M12 - Electric protection according to DIN40050, IP65 - Medium consumption: 20 mA Body: 30x30mm square in anodized aluminium Wetted parts: in stainless steel AISI 316 L with ceramic sensor and integral seal in NBR Warranty: see dedicated page Spare parts: see dedicated page Also available: - Special max pressure - Special electrical connection - Special value of hysteresis - CU-TR for Russian market
