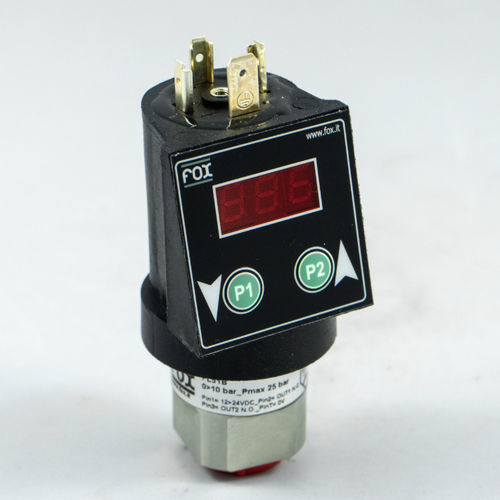

Electronic pressure switch FL5 series

IP65adjustablewith digital display

Switching frequency: 200 cycles/min Setting point: selectable by pressing the P1 and P2 buttons Switching accuracy: 1% of the end of scale to 20°C Hysteresis value: adjustable gap between all range of scale Range of the adjustment: from 1% to 100% of end of scale Weight: 0.43 Kg Mechanical life: 10x106 cycles at 20°C Body: in Nylon glass loaded ruotable 60°, with fluid contact parts in stainless steel AISI316, ceramic sensor and NBR seal Installation: in every position, panel assembly with 2 through holes Ø5 mm; hydraulic connection ¼” BSP-F o M Display: n°3 digit of 7.6 mm adjustable by 60° Electric Features: - Maximum contact load: 0,5 A - Contacts (NA+NC – NC+NC – NA+NA) - Output signal 4-20mA combinable to contacts (only with M12 connector) - Electric connection according to DIN43650, M3 - Electric connection according to IEC60947-5-2, M12 - Electric protection according to CEI EN 60529, IP65 - Medium consumption: <50 mA - Power supply: from 12 to 24 Volt - Interference emission and immunity according to EN 61.326 Warranty: see dedicated page Spare parts: see dedicated page Also available: - Special max pressure - Special electrical connection - Special value of hysteresis - CU-TR for Russian market - Execution with display in PSI
