Bladder accumulator HG series
nitrogenfor mineral oilfor non-aggressive fluids

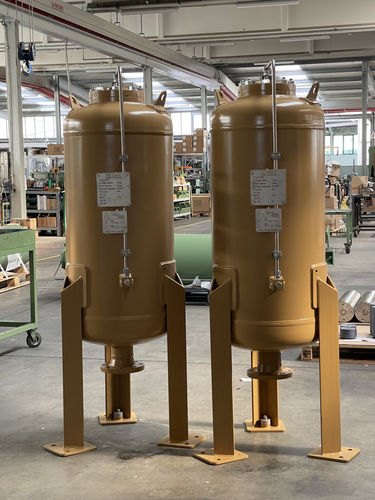

Bladder accumulator - HG series - Fox S.r.l. - nitrogen / for mineral oil / for non-aggressive fluids
Bladder accumulator - HG series - Fox S.r.l. - nitrogen / for mineral oil / for non-aggressive fluids
Bladder accumulator - HG series - Fox S.r.l. - nitrogen / for mineral oil / for non-aggressive fluids - image - 2
Bladder accumulator - HG series - Fox S.r.l. - nitrogen / for mineral oil / for non-aggressive fluids - image - 3
Bladder accumulator - HG series - Fox S.r.l. - nitrogen / for mineral oil / for non-aggressive fluids - image - 4
Bladder accumulator - HG series - Fox S.r.l. - nitrogen / for mineral oil / for non-aggressive fluids - image - 5
Bladder accumulator - HG series - Fox S.r.l. - nitrogen / for mineral oil / for non-aggressive fluids - image - 6
Bladder accumulator - HG series - Fox S.r.l. - nitrogen / for mineral oil / for non-aggressive fluids - image - 7
Add to favorites
Compare this product


Characteristics

Technology
bladder
Application
nitrogen, for mineral oil, for non-aggressive fluids
Material
carbon steel, stainless steel
Other characteristics
hydro-pneumatic, welded, noise damper, flange-mounted

Description

Maximum working pressure (PS): Up to 50 bar Test Pressure (PT): PS x 1,43 / 1,3 / 1,5 Material: carbon steel Working temperature (TS): -20°C / +80°C Standard bladder: polyurethane; suitable for mineral oils, fuels and non-corrosive fluids Standard nitrogen valve: ⅝” UNF or M28x1.5 Installation: vertical (nitrogen valve upward) Compression ratio: - recommended: P2/P0 = 2.5 - maximum: P2/P0 = 4 Mechanical life: the number of cycles is inversely proportional to the increase of the compression ratio. For pulsation dampener applications, the nitrogen value must be from 60% to 80% of the working pressure also in relation with the type of pump and the working temperature Warranty: see dedicated page Spare parts: see dedicated page Available: - Outside epoxy painted as per standard FOX procedure or as project specification - Bladders in IIR, NBR, FPM, ECO - Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN - Special connection on request - HGX series in AISI 304L/316L - High pressure version till 50 barg - Volume up to 5000 liters
