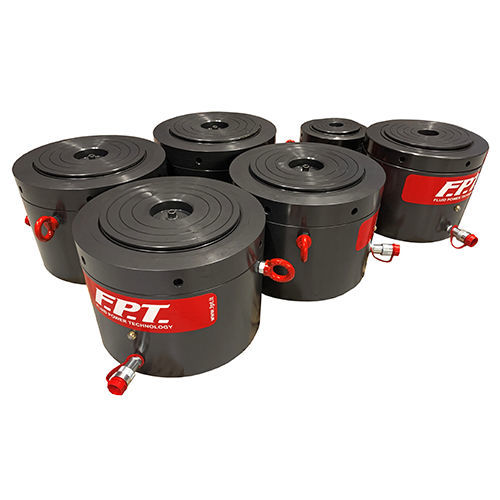

Hydraulic cylinder CSE GS TU series

single-acting load-returnwith lock-nutanti-corrosion

• High tonnage hydraulic cylinders, with lock nut, load return. Push force from 50 to 1000 ton, with range of strokes from 50 mm to 300 mm • High tonnage hydraulic cylinders up to 3000 ton, suitable for heavy usage, lifting operations, pushing and heavy lifting. • Plunger execution, equipped with stroke indicator and anti overstroke device. • Lock nut for safe load upkeep. The threaded nut allows the locking and the mechanical upkeep of the load even for very long periods of time with disconnected pump. The operator then has the opportunity to work under raised load in complete safety. • The guiding surfaces are sized to guarantee optimal performance in load offset absorption, 3/8 ’’ NPT female coupler with dust cap equipped. • Removable high strength head and possibility of mounting a tilting saddle for better distribution of the load to be lifted. • Nitox ONC treatment on all mechanical components for maximum resistance against corrosion and wear. • All models weighing more than 20 kg are equipped with lifting eyebolts. • Possibility to design and produce custom made hydraulic cylinders on request, with dedicated geometries, performances and features. Single acting high tonnage cylinder, load return with lock nut High tonnage hydraulic cylinder with lock nut in high pressure. Pushing force from 50 to 1000 tons with a stroke range from 50 mm to 300 mm. High tonnage suitable for lifting and pushing operations. Operating pressure 700 bar. Guide surfaces are sized to guarantee optimal performance in absorbing the offset load, plunger execution, equipped with stroke indicator and anti overstroke device.
