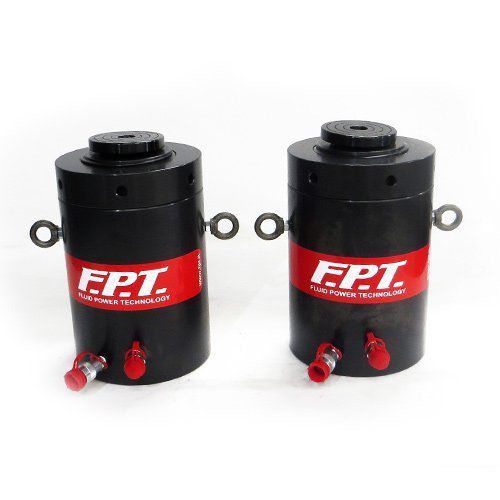

Cylinder with lock-nut CSE GS series

hydraulicdouble-actingfor lifting applications

FPT high tonnage lock nut hydraulic cylinders, with gravity return. CSE GS Series are with the threaded safety ring, the load can be mechanically locked and held for extended periods of time even when the hydraulic pump is disconnected. Therefore, the operator can work under a lifted load in complete safety. • Cylinders designed for heavy lifting, to support and hold bridges, viaducts and heavy structural steelwork. • Hydraulic cylinders with gravity return, max pressure 700 bar • The end-stroke ring guarantees maximum operator safety, preventing plunger over-stroke. • High-strength removable head. • Custom made hydraulic cylinders high pressure can be manufactured on customer request up to 3000 ton. High tonnage cylinders, oil return High tonnage hydraulic cylinders with single acting and locking collar, return under load at high pressure. Thrust force from 10 to 600 tons with stroke range from 25 mm to 300 mm. High tonnage hydraulic cylinders that can be manufactured up to 3000 tons, suitable for lifting, pushing and large lifting operations. Operating pressure 700 bar. The guide surfaces are sized to ensure optimal performance in absorbing the offset load and the end-of-stroke ring nut increases operator safety by avoiding the extra stroke of the piston.
