Hydraulic piston pump PMSA series

manualaluminumcompact

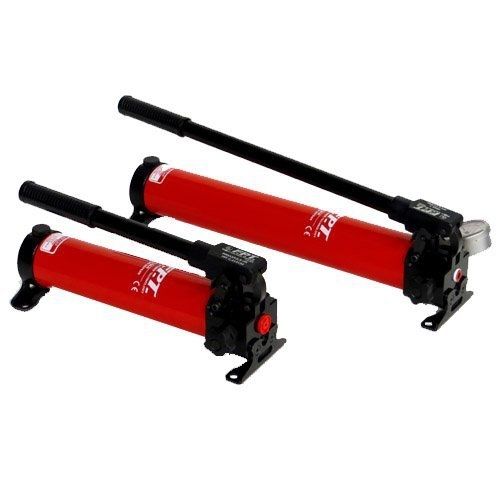

Aluminum hydraulic hand pumps single speed high pressure are handy and easy to use pumps ideal for controlling medium hydraulic cylinders. • Lightweight and compact, they are built aluminum, an have a maximum working pressure of 700 bar. • Strong and functional pumps that require minimum maintenance. • Equipped with an internal safety valve calibrated to maximum operating pressure. • A pressure gauge can be mounted directly on the pump. • Equipped with a 0.5 liter tank in the compact version, with a 1 liter tank in the most used version and a 3 liters tank in the bigger version. High pressure hydraulic hand pumps - Single speed - 700 bar - 10000 psi High pressure hydraulic hand pumps produced in light aluminum alloy of aeronautical derivation to reduce as much as possible the weight. Maximum operating pressure 700 bar. Single stage hand pump with 3 cc flow rate suitable for single acting applications. Equipped with an ergonomic bypass hand wheel in techno polymer for controlled pressure relief, with integrated pressure gauge connection that allows direct mounting of the measuring instrument with 45 ° inclination for a correct reading and lever locking system for easy and better portability. Oil filler cap with integrated breather. Sturdy feet with holes for attachment to machinery or structures. Pressure safety valve integrated in the pump body for maximum operator safety. Design studied to have high performances maintaining an optimal effort on the lever, a reduced weight and an excellent ergonomics. Robust hand pumps – heavy duty – with long maintenance intervals.
