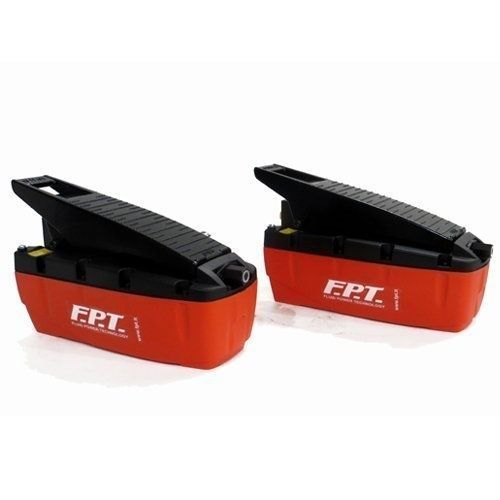

Pneumatic hydraulic pump PP-700 series

double-actingcompacthydro-pneumatic

Air hydraulic pumps at 700 bar and 1000 bar that are compact and easy to use. • Equipped with a standard reservoir of 2.5 litre in plastic and 5 or 10 litre in steel. • Connected to the compressed air line with a threaded G ¼” fitting. • The 3 or 4 way valves can be used to operate single or double-acting cylinders. • Available version RC with remote control. • Air operating pressure 2.8 to 8 bar. • The air pumps PP can also be realized at 1000 bar with different configurations. High pressure air hydraulic pumps, the ideal solution when you have the compressed air line, for operating hydraulic cylinders, for pressurization tests and general laboratory tests. They are fitted with standard 2.5 liter plastic tanks and 5 and 10 liter steel tanks. In the standard version the air hydraulic pumps have pressure set at 700 bar and 1000 bar. They are connected to the compressed air line via a G ¼ ”threaded fitting. Operating air pressure from 2.8 to 8 bar. They are available with 3 or 4 way valves, they allow single or double acting cylinders to be operated, with remote control RC.
