Diesel engine N45
4-cylinderturbochargedin-line

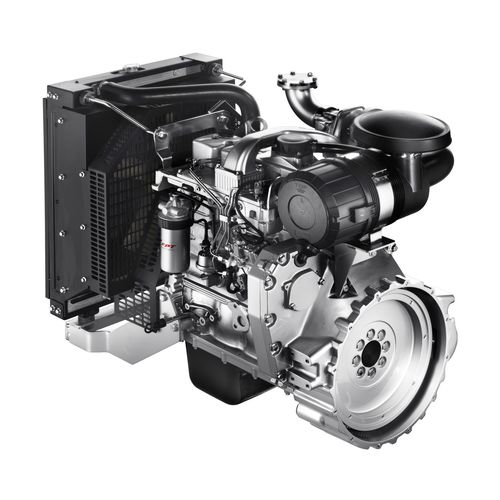

Diesel engine - N45  - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line
Diesel engine - N45  - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line
Diesel engine - N45  - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 2
Diesel engine - N45  - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 3
Diesel engine - N45  - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 4
Diesel engine - N45  - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 5
Diesel engine - N45  - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 6
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, in-line
Product applications
for generator sets, power generation
Other characteristics
4-stroke, liquid-cooled
Power

Min.: 42 kW
(57.104 hp)

Max.: 126 kW
(171.312 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1)

Displacement

4.5 l
(1.189 gal)

Length

1,367 mm
(53.8 in)

Width

753 mm
(29.6 in)

Height

1,086 mm
(42.8 in)

Description

Developed to satisfy the most demanding Customer requirements, the NEF Series is the evidence of FPT Industrial technological excellence. Available in 4 cylinders versions, NEF engines offer high, constant power and torque delivery with top-class levels of reliability and efficiency. The NEF Series is offered with mechanical injection and the rotary pump guarantees accurate fuel delivery and best trade-off between performance and easy and fast service/maintenance operation. NEF engines are available in naturally aspirated, turbocharged and turbocharged with aftercooler versions, that allow final users to optimize both engine installation and final Genset performance. ​Options include hot part guards, water jacket heater, alarm senders, oil drain systems, front radiator guard.​ Thanks to their extraordinary design flexibility, all NEF engines are adaptable to market request. NEF engines are certified ISO 8528 standard, G2/G3 class for excellent load acceptance. High thermodynamic performance and engine response make these engines the best choice in all power generation applications. Emission performance is achieved without external EGR, VGT or electronics systems. Flexibility of use is enhanced by cold-starting temperature down to -25°C (with grid heater).
