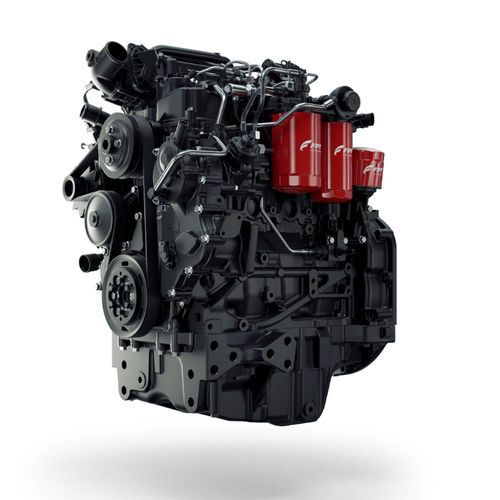

Diesel engine F34
4-cylinderturbochargedin-line

Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line
Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line
Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 2
Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 3
Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 4
Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 5
Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 6
Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 7
Diesel engine - F34 - FPT Industrial S.p.A. - 4-cylinder / turbocharged / in-line - image - 8
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, common rail, in-line
Product applications
agriculture
Emissions level
Tier 4, Stage V
Other characteristics
4-stroke, compact, liquid-cooled, cooled by exhaust gas recirculation
Power

55 kW
(74.779 hp)

Torque

318 Nm, 424 Nm
(234.5448 ft.lb, 312.7264 ft.lb)

Rotational speed

1,500 rpm, 2,200 rpm
(9,424.78 rad.min-1, 13,823.01 rad.min-1)

Displacement

3.4 l
(0.898 gal)

Weight

315 kg
(694.46 lb)

Length

714 mm
(28.1 in)

Width

601 mm
(23.7 in)

Height

852 mm
(33.5 in)

Description

Agricultural The Power of Density: high performance in a compact packaging Low operating costs Ease of maintenance F5 series represents the compact and flexible solution for light and midrange applications, delivering high performance with low operating costs. Engines of this series offer top performances in the category with a very compact layout, which is key for agriculture equipment applications in this size. The optimized design of turbocompressors and pistons grants power and an extraordinary torque density for application both under and above 56kW with respectively 3.4-liter and 3.6-liter engines. Our innovative solutions reduce fuel consumption thus minimizing costs and simplifying maintenance. To fulfill Stage V emissions requirements, F36 features the HI-eSCR2 system, a maintenance-free system marking a further step in FPT Industrial’s long-term SCR experience. While meeting Stage V emissions, HI-eSCR2 aftertreatment does not require layout changes compared to previous Stage IV / Tier 4 Final, avoiding significant machine redesign, mainly with respect to the unchanged cooling requirements across emission stages. F34 Stage V for applications below 56kW is equipped with a compact DOC+DPF solution, ensuring ease of use and low operating costs.

VIDEO
