Diesel engine N67
6-cylinderturbochargedcommon rail

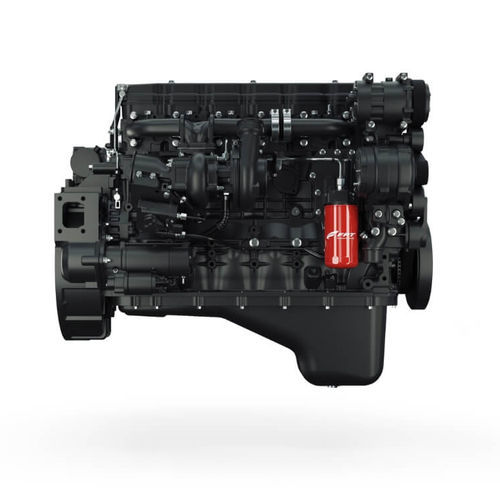

Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 2
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 3
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 4
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 5
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 6
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 7
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 8
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 9
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 10
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 11
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 12
Diesel engine - N67 - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 13
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbocharged, common rail, in-line
Product applications
for the construction industry, power generation, agriculture, marine
Emissions level
Tier 3, Stage III, Stage V, Tier 4, Stage IV
Other characteristics
4-stroke, compact, liquid-cooled
Power

Min.: 129 kW
(175.391 hp)

Max.: 212 kW
(288.24 hp)

Torque

770 Nm
(567.9229 ft.lb)

Min.: 770 Nm
(567.9229 ft.lb)

Max.: 1,160 Nm
(855.5721 ft.lb)

Rotational speed

1,250 rpm, 1,500 rpm, 2,200 rpm
(7,853.98 rad.min-1, 9,424.78 rad.min-1, 13,823.01 rad.min-1)

Displacement

6.7 l
(1.77 gal)

Weight

530 kg
(1,168.45 lb)

Length

1,054 mm, 1,062 mm
(41.5 in, 41.8 in)

Width

671 mm, 687 mm
(26.4 in, 27 in)

Height

1,027 mm, 1,049 mm
(40.4 in, 41.3 in)

Description

Construction New engine hardware for improved performance Low operating costs with up to 1200 hours oil change interval No-EGR and maintenance free solution for maximum reliability and uptime Designed for the most demanding missions of agricultural equipment, NEF series is the main example of FPT Industrial’s technological excellence. Since 2001 more than 2 million engines have been produced for a number of applications: agriculture, construction equipment, on-road, marine and power generation. With best performances in the category in terms of both power and torque, fuel efficiency and reliability, NEF series stands out for its flexibility, featuring 4 (N45) and 6 (N67) cylinders configurations, with either structural or non-structural design and a wide range of options to customize the solution according to the customers' needs. Thanks to FPT's pioneering EGR free combustion and exclusive, patented HI-eSCR2 after-treatment technology, NEF series represents the productivity benchmark in mid-range applications, with further enhancements in performance and efficiency with newly designed Stage V engines.
