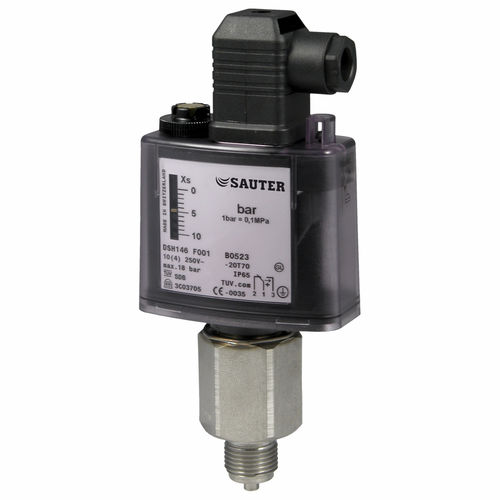

Gas pressure limiter DS seriesfor steambrassstainless steel
Add to favorites
Compare this product
Characteristics
- Product
- for gas, for steam
- Material
- brass, stainless steel
- Protection level
- IP65
- Applications
- industrial
- Pressure
Max.: 40 bar
(580.15 psi)Min.: -1 bar
(-14.5 psi)- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
How energy efficiency is improved
Control and monitoring according to needs and with no auxiliary energy.
Features
Switching point can be adjusted
Sealable
Pressure sensor made of brass for non-aggressive media (DSL)
Pressure sensor made of stainless steel for aggressive media (DSH)
Locking type: With falling pressure (DSL) or with rising pressure (DSH)
SIL 2 certified as per EN 61508
Approved for marine applications (GL and LR certified)
