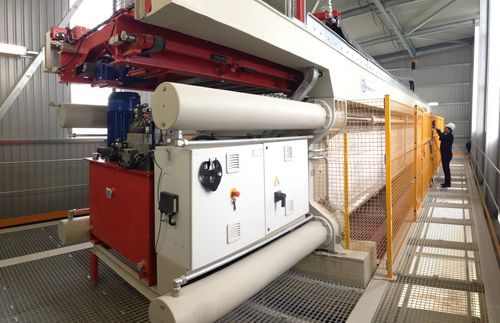

Overhead beam filter press FB/2000-120

automaticfor sludgehigh-volume

The overhead beams filter press has been designed and manufactured by Fraccaroli & Balzan S.p.A.to fulfill the requirements of Companies which need very fast machines with high productivity. Filter press completely open both on top and on the side to facilitate maintenance operations, changing clothes and replacing plates. Flexible and module-type construction, with the possibility to have from 80 to 190 plates. Robot installed on top of the filter press, for opening/closing the plates, shaking the plates and automatic washing of clothes. Drip tray for collection of dripping water, equipped with walking grid for maintenanca operations in safety conditions. System for anchoring the plates at the sides to guarantee freedom of movement and maximum precision. (Core blow) Automatic system for cleaning the central plate collector at the cycle end. (Cake blow and cake wash) Automatic system to blow air and/or water through the mud cake. Recessed chamber or membrane plates. Slurry feeding pumps can be centrifugal, diaphragm or single screw. Tele-assistance system through SIM card or internet.
