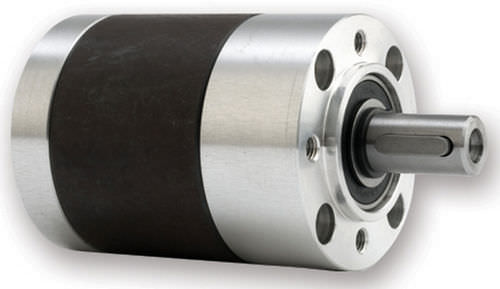

Planetary gear reducer IMS
coaxial100 - 200 Nmfor DC motors

Planetary gear reducer - IMS - Fracmo - coaxial / 100 - 200 Nm / for DC motors
Planetary gear reducer - IMS - Fracmo - coaxial / 100 - 200 Nm / for DC motors
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
100 - 200 Nm
Applications
for DC motors

Description

Features Custom Features Configuration: Inline Maximum Output Torque: 120Nm Number of Drive Stages: 1, 2 or 3 Dimensions - W x D x H: Ø x Length 32 - 81 x 52 - 170mm Weight: 0.16 - 3.2Kg Maximum Shaft Diameter: 19mm Construction: Aluminium Lubrication: Grease (sealed for life) Internal Declutch: No Mounting Options: Yes Gear Material: Steel or Delrin® Hollow Shaft Option: No Ratio: 4:1-300:1
