Refrigerant dehumidifier FD TCR series

fixedairfor swimming pool

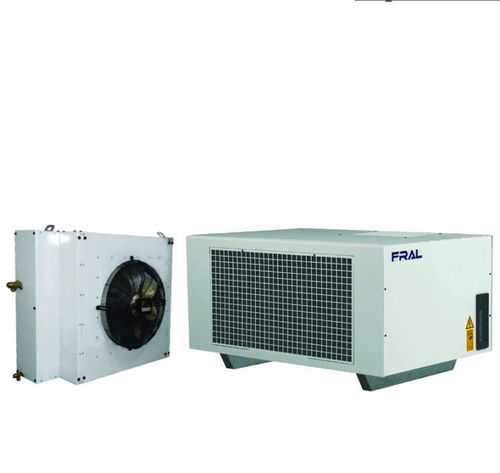

The FD TCR series fixed dehumidifiers are high-performance appliances. This version is equipped with external condenser which enables dehumidification coupled with cooling, controlling humidity and temperature at the same time. They feature a washable air filter and must be connected to a fixed drain. They are equipped with an onboard mechanical dehumidostat. It should always be associated with a temperature control: digital thermostat. The dehumidifiers of the series TCR can be equipped with an optional HOT GAS defrosting system, with electronic and thermostatic control, and can work with temperatures close to 0 °C. FRAME Structure with panels made of sturdy galvanized steel, painted with epoxy powder ensuring high resistance to atmospheric agents and aggressive environments. The panels are removable to allow a quick inspection and maintenanceof the internal parts. COMPRESSOR Scroll compressor mounted on vibration dampers. Provided with resistance on the housing and thermal safety. REFRIGERANT CIRCUIT Evaporator and condenser: the coil is made of copper pipes and aluminium fins. Drying filter, Shrader valves, minimum and maximum pressure switch. Defrosting thermostat and solenoid valve in version S. CONDENSATE COLLECTION TANK The tank is in plastic non-corrosive, the dehumidifier should be connected to a fixed drain, preventing the formation of double siphons. Attach a tube with 3⁄4" F coupling to the welded fitting of the tank.
