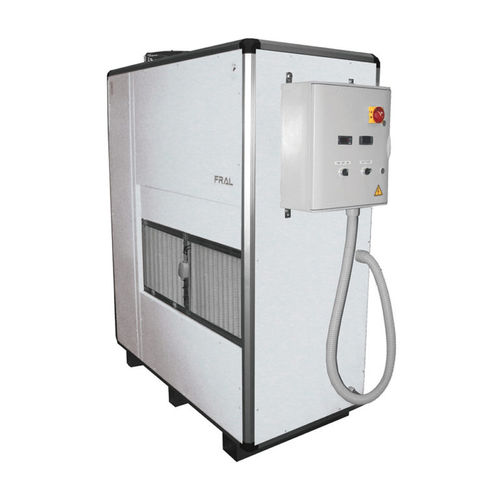

Refrigerant dehumidifier FSDV series

airenergy efficiency

The dehumidifiers HIGH EFFICIENCY SDV series are high performance. This machine is a special dehumidifier capable of controlling temperature and humidity. E ‘equipped with a particular system of heat recovery between downstream and upstream of the evaporator where the effect is able to reach very low levels of relative humidity, and also has a superior energy efficiency of 30-60% compared to the traditional dehumidifier. FRAME Structure with aluminium profiles and panels in sturdy galvanised sheet, painted with epoxy powder ensuring high resistance to atmospheric agents and aggressive environments. The panels are sandwich and removable to allow a quick inspection and maintenance of the internal parts. COMPRESSOR Compressor scroll mounted on vibration dampers. Provided with resistance on the housing and thermal safety. REFRIGERANT CIRCUIT Evaporator and condenser: the coil is made of copper pipes and aluminium fins. Drying filter, Shrader valves, minimum and maximum pressure switch. Defrosting thermostat and solenoid valve in version S. CENTRIFUGAL FAN Centrifugal double suction fan, built with sturdy blades in galvanized sheet, statically and dynamically balanced. Two-speed fan. CONDENSATE COLLECTION TANK The tank is in non-corrosive stainless steel, the dehumidifier should be connected to a fixed drain, preventing the formation of double siphons. Attach a tube with 3⁄4" F coupling to the welded fitting of the tank.
