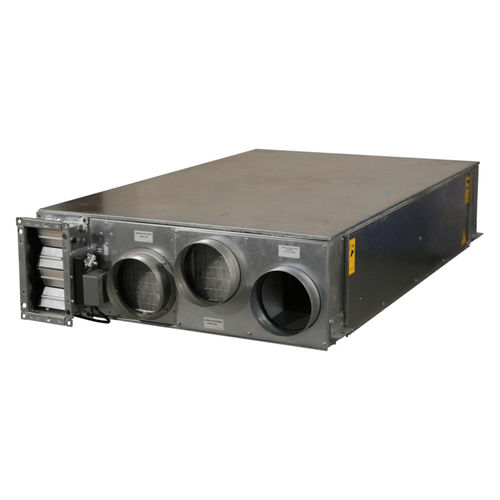

Monobloc refrigeration unit F-VMC-RD/RDC

ceilingheating

Packaged unit for Controlled Mechanical Ventilation, including an high efficiency heat recovery, with a sophisticate and precise control of the air flows,and a refrigerant circuit for isothermic dehumidification or air cooling. The Machine has a Microprocessor control of all the functions which can be set with a user friendly touch screen, or through an Mod Bus connection. FRAME The seriers F - VMC are made from hot-galvanised thick sheet metal, to ensure the best resistance against the corrosions with removable panels for easy inspection and maintenance. COMPRESSOR The compressor is alternative and ermetic equipped with: -High efficiency for saving in energy consumption. -Vibration dampers in order to reduce vibration. -Use of the HFC refrigerant for the protection of the environment. -High reliability, long life. -Acoustic insulation. Low noise level, quiet operation. REFRIGERANT CIRCUIT Evaporator and condenser: the coil is made of copper pipes and aluminium fins with 2,8 mm step. The cooling circuit is hermetically sealed. Capillary, filter drier in silica gel, high pressure device (deu-climate version only). CONDENSATE COLLECTION TANK Thermoformed plastic PST; condensate drain tube fitting: 16mm.
