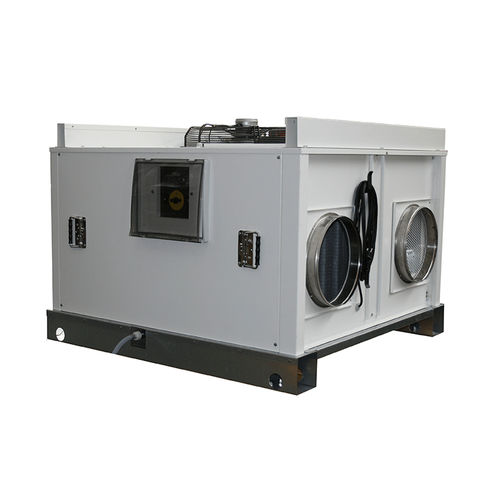

Rooftop air conditioner FRT11

officeoutdoor

The FRT11 is an air Conditioners and is a transportable unit, developed primarily to provide air conditioning in temporary or transportable buildings or tents. It is a small light weight unit built into a rigid steel frame. The single fan air conditioners with large volume air movement of 1500 m^3/h is ideally suited to cool large office areas, data center and workspaces. FRT11 unit has been designed for a fast rental installation and start up. FRAME Structure with sandwich panels made of sturdy galvanized steel, painted with epoxy powder ensuring high resistance to atmospheric agents and aggressive environments. The panels are removable to allow a quick inspection and maintenance of the internal parts. COMPRESSOR Two scolls compressor mounted on the vibration damper and equipped of electric resistance on the housing and thermal protection. FAN Centrifugal fan, built with sturdy blades in galvanized sheet, statically and dynamically HOT GAS DEFROST Enables to use the rooftop in environments with temperature up to 0,5°C. There is a special three way valve injection system to accelerate the defrosting of the ice formed in the evaporator. MICROPROCESSOR Electronic device for controlling the defrosting cycles, the compressor timing, electronic expansion valve, alarms and fan motor speed. The dehumidifier is equipped with phases step sequence control.
