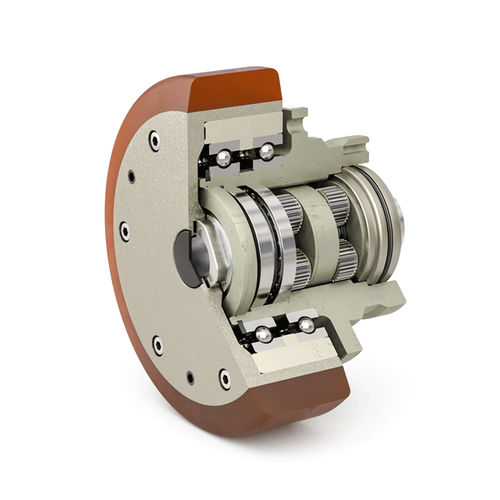

Planetary gear reducer NG500 series
coaxial200 - 500 Nm20 - 50 Nm

Planetary gear reducer - NG500 series - Framo Morat - coaxial / 200 - 500 Nm / 20 - 50 Nm
Planetary gear reducer - NG500 series - Framo Morat - coaxial / 200 - 500 Nm / 20 - 50 Nm
Planetary gear reducer - NG500 series - Framo Morat - coaxial / 200 - 500 Nm / 20 - 50 Nm - image - 2
Planetary gear reducer - NG500 series - Framo Morat - coaxial / 200 - 500 Nm / 20 - 50 Nm - image - 3
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm
Configuration
compact
Applications
drive, wheel, vehicle
Rotational speed

Max.: 3,000 rpm
(18,849.56 rad.min-1)

Min.: 93.8 rpm
(589.36 rad.min-1)

Description

Compact design thanks to integration of planetary carrier in impeller High radial loads thanks to direct transfer of force to vehicle frame Long service life and low noise emissions thanks to separation of gear and impeller Easy wheel change thanks to maintenance-friendly design Hub gears from Framo Morat are suitable for a huge range of application areas, both indoors and outdoors. These applications include high-bay warehouses in the intralogistics field, the transport of medication in hospitals, and automated, future-oriented agriculture. The NG500 drive unit can manage loads of up to 500 kg per wheel. The compact design of the drive unit makes it perfect even when space is at a premium.
