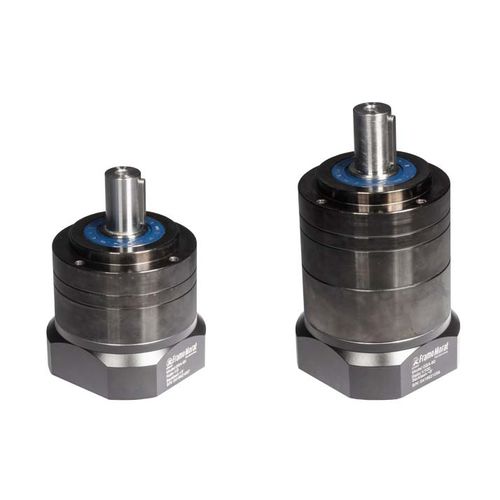

Planetary gear reducer GSA serieshelical gearcoaxial200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 10 - 20 Nm
- Performance
- precision, low-backlash
- Other characteristics
- large, combined
- Rotational speed
3,000 rpm, 4,000 rpm, 6,000 rpm, 8,000 rpm
(18,849.56 rad.min-1, 25,132.74 rad.min-1, 37,699.11 rad.min-1, 50,265.48 rad.min-1)- Backlash
0.05 rad, 0.08 rad
Description
The low-backlash planetary gearheads of the GSA series are designed for high positioning accuracy and highly dynamic cycle operation. Ground, helical toothed precision components inside the gear ensure low running noise and high running smoothness.
Thanks to its robust design, the gear unit is convincing in applications in which large radial and axial forces are exerted. The hole pattern on the output side allows easy mounting.
Catalogs
Planetary_gears
52 Pages
Planetary gears.
52 Pages
