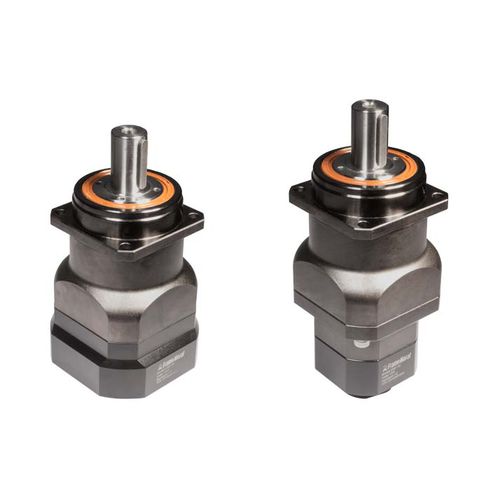

Planetary gear reducer GSF serieshelical gearcoaxial200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
- Performance
- precision, low-noise
- Applications
- transmission, shaft
- Other characteristics
- double, IP65
- Rotational speed
3,000 rpm, 4,000 rpm, 6,000 rpm, 8,000 rpm
(18,849.56 rad.min-1, 25,132.74 rad.min-1, 37,699.11 rad.min-1, 50,265.48 rad.min-1)- Backlash
0.05 °, 0.08 °
Description
The precision planetary gear units of the GSF series with ground helical gearing and preloaded double taper roller bearings ensure low-noise synchronism due to their immense load carrying capacity and rigidity even under high load conditions. The one-piece planet carrier and the integrated needle roller bearings enable the transmission of high torques. The additional shaft sealing ring ensures maximum protection against dust and splash water in accordance with protection class IP65.
Catalogs
Planetary_gears
52 Pages
Planetary gears.
52 Pages
