Chamber oven G362

polymerizationgasvacuum

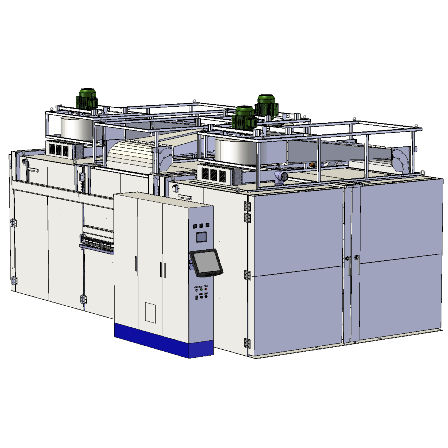

Oven for the polymerization of composite parts for a worldwide leader of aeronautics equipments and systems. Technical Data: Volume: 36000L Maximum Temperature: 200°C Inner Casing Size: 3000 x 6000 x 2000 mm Wattage: 130000 Watts A modular construction Oven split into three 12m3 modules to make transport by container easier. Six internal lights in the working volume to increase the visibility of the operator during loading and unloading. An Ø 60 mm access port allows the passage of various cables or probes. A silicone stopper allows you to block the passage when it isn’t used. Two boxes with 8 thermocouple J plugs each one, to measure temperature anywhere in the working volume. Electrical cabinet independent of the oven. It may be installed just next to the oven or moved a few meters away, according to your premises layout. The bottom of the oven is 3 mm thick and bevelled to make trolley access easier. Polymerization with vacuum bag The oven is also intended for the polymerization of composite parts in vacuum bags. Possibility to connect up to 16 vacuum bags (8 vacuum bags per vacuum rail). Independent solenoid valves control the pumping of vacuum bags. Vacuum level sensors allow you to control the vacuum level in each vacuum bag. External connector on each vacuum rail to connect vacuum pumps.
