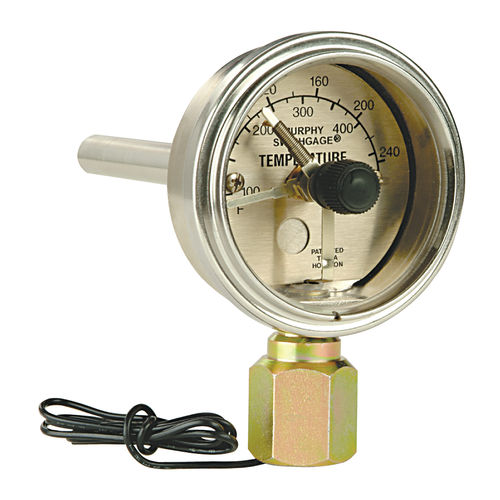

Temperature gauge SDB series

fueladjustableexplosion-proof

Easy to read dial Bi-metallic sensor Two ranges: 100 to 500°F (40 to 260°C) 200 to 1000°F (100 to 500°C) Dials scaled in degrees fahrenheit celsius CSA listed explosion-proof model available The SDB Series are direct-mounting temperature devices. They provide an accurate direct-reading gage with an adjustable limit switch to activate alarms and/or shutdown. A knob on front of the instrument allows you to adjust the limit switch trip point. Pointer movement is actuated by a bi-metallic sensing element. Models SDB500, SDB501 and SDB500EX have a temperature range of 100° to 500°F (40° to 260°C). SDB500EX enclosure is explosion-proof and CSA listed for Class I, Group C and D hazardous locations. The SDB1000 has a temperature range of 200° to 1000°F (100° to 500°C). The most common use of the SDB Series is to monitor gas compressor temperatures. Engine exhaust temperature can also be monitored to indicate overloading or lean fuel mixtures, or use the SDB to help coordinate loads on twin-engine installations.
