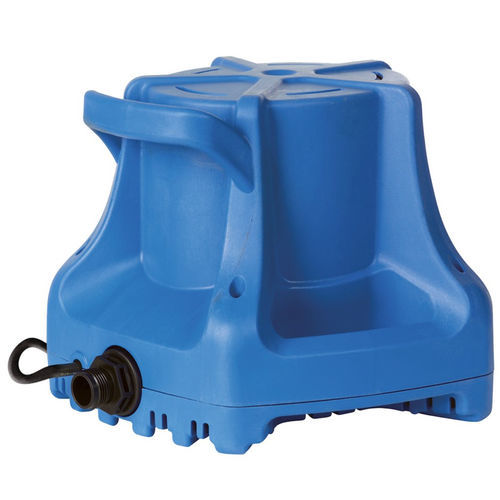

Automatic pump APCP-1700
watermanualstationary

automatic pump
automatic pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
manual
Mobility
stationary
Domain
industrial
Applications
discharge, cleaning
Voltage
230 V
Protection level
IP68
Other characteristics
automatic, built-in, integrated
Flow

Max.: 108 l/min
(28.53058 us gal/min)

Min.: 0.3 l/min
(0.07925 us gal/min)

Head

Max.: 6.5 m
(21'03" )

Min.: 0.3 m
(0'11" )

Power

0.25 W, 270 W
(0.34 hp, 0.37 hp)

Fluid temperature

Max.: 35 °C
(95 °F)

Min.: 0 °C
(32 °F)

Description

Little Giant Pool Cover Pumps help safeguard and protect the pool cover from prolonged accumulation of rain or melting snow. We offer manual and automatic versions of pumps certified for use on pool covers, all of which can attach to a standard garden hose for easy water removal. Application ■ Automatic pool cover pump designed specifically for pool cover draining ■ Removable intake screen for easy cleaning and maintenance ■ Built-in handle for portability and ease of placement and removal ■ Integrated float switch for reliable automatic operation ■ Side discharge for optimal water removal ■ Weighted to attract water to the pump ■ Higher flow for head heights of 0,3 m compared to similar pumps ■ Voltage: 230 V / Frequency: 50 Hz / In: 1.2 A ■ Ambient temperature: max 35 °C ■ Start/Stop Automatic: Start 6.3 cm (2" 1/2) / Stop: 2.5 cm (1") ■ Protecion degree: IP68 ■ 10 m cable with Schuko plug ■ 3/4" garden hose connection
