High-efficiency motor 10HES 400 series

3-phasesynchronous400 V

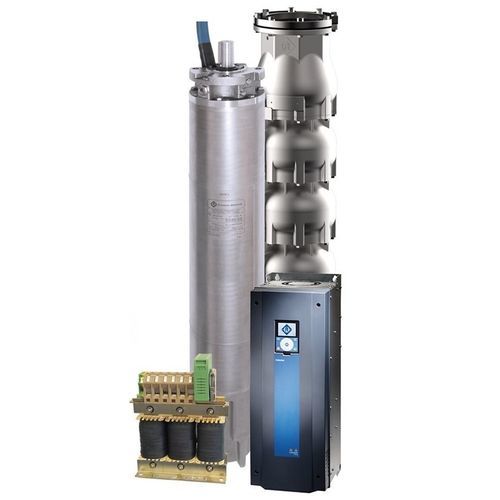

System package with energy savings up to 7 % including: ■ 10" rewindable synchronous submersible motor ■ Variable frequency drive ■ Matching output filter ■ SUPERIOR EFFICIENCY ○ Up to 7 % improved motor efficiency* with excellent partial load behaviour (SKU reduction)* ○ One-stop shop and perfectly matching components guarantee first-class performance/efficiency ○ Power factor corrected input (No power compensation needed) ○ Significant lower motor heat rise (Increased lifetime) ○ Easy system set-up due tailored pre-settings, user interface and own Franklin Electric software ○ Communication ModBus (RS485 and Ethernet) ■ INCREASED LIFETIME ○ Incorporated Soft start and protection features (no additonal investment) ○ Speed control (Optimum aggregate operation - pump matches system any time) ■ FULLY SUPPORTED ○ Easy system commissioning due to integrated start-up wizard with tailored pre settings. ○ Fully supported by the Technical Support Professionals and Field Service Engineers ■ System Power Supply: 400 V / 460 V ±10 % ­■ System Supply Frequency: 50 Hz - 60 Hz ±2 % ■ Motors installation orientation: Vertical / horizontal (shaft end heightened) - 250 kW motors may not be installed horizontally ■ MPPT algorithm maximizes system performance ■ Protection: ○ motor: IP68, insulation class Y ○ drive: IP00 ○ filter: IP00
