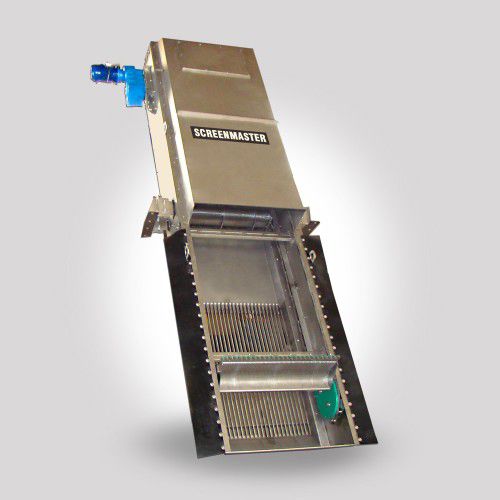

Bar screen Screenmaster® CS

The Screenmaster CS provides efficient cleaning of a bar screen rack and removal of solids from rectangular channel installations. This unit employs a front clean/ front return principle. Its easy to install in new or existing channels. The unit installs at a 75° inclination so it has a very small footprint. The design features a simple, continuous rotary motion. As the rake head passes through the bar slots collecting debris, it travels up the units dead plate until it reaches a special scraper supplied with a dash pot for smooth operation. The screenings then drop out the units discharge chute. This versatile unit is simple in design but highly efficient in operation, requiring minimal power to operate. The Screenmaster CS is supplied complete with an S320 Program Controller which activates on a timed basis or when a high level is indicated by a supplied level sensor. The Screenmaster is provided with a 3/4HP 1HP motor and gear drive. This unit is custom built for any channel width up to 78wide (2 m) and for a lift height of up to 38 ft. (11.6 m).
