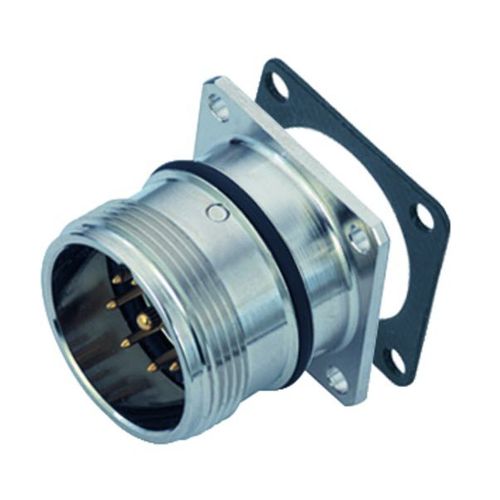

Electrical power supply connector 623 series
circularmaleM23

Electrical power supply connector - 623 series - Franz Binder GmbH + Co. Elektrische Bauelemente KG - circular / male / M23
Electrical power supply connector - 623 series - Franz Binder GmbH + Co. Elektrische Bauelemente KG - circular / male / M23
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Shape
circular
Connection type
male
Size
M23
Electrical characteristics
power
Material
polyamide, PBT
Protection class
IP67
Other characteristics
panel-mount
Primary current

8 A, 10 A, 20 A

Voltage

150 V, 300 V

Description

Connector locking systembolted Terminationsolder Arrangement of contactsclockwise Wire gauge (mm)2,50 mm² Wire gauge (AWG)14 Degree of protectionIP67 Mechanical operation> 50 Mating cycles Upper limit temperature125 °C Lower limit temperature-20 °C Rated impulse voltage2500 V Pollution degree3 Overvoltage categoryII Insulating material groupIII Volume resistivity≤ 3 mΩ Insulation resistance≥ 10¹⁰Ω Contact materialCuZn (brass) Contact platingAu (gold) Contact body materialPBT/PA66 Customs tariff number85369010 Weight (g)32
