Electrical power supply connector 693 seriescircularmalescrew-locked
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- circular
- Connection type
- male, screw-locked
- Electrical characteristics
- power
- Material
- PBT
- Protection class
- IP67
- Primary current
10 A, 16 A
- Voltage
250 V, 400 V
Description

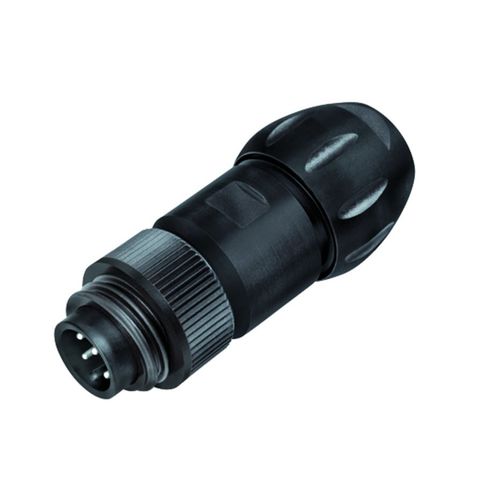

RD24 Male cable connector, Contacts: 3+PE, 7.0-17.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, Vario
Connector design - Male cable connector
Version - Connector pin straight
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP67
Cross-sectional area - max. 2.50 mm² / AWG 14
Cable outlet - 7.0-17.0 mm
Temperature range from/to - -40 °C / 100 °C
Tightening torque sleeve - 2.0 Nm
Tightening torque pressing screw - 2.5 Nm
Mechanical operation - > 500 Mating cycles
Weight (g) - 48.40
Customs tariff number - 85369010
