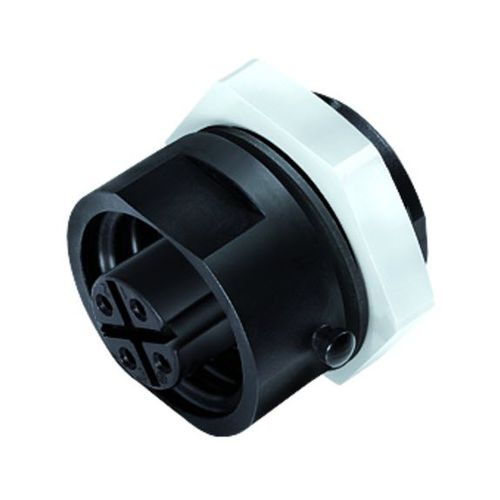

Electrical power supply connector 692/693 seriescircularfemalescrew-locked
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- circular
- Connection type
- female, screw-locked
- Electrical characteristics
- power
- Material
- PBT
- Protection class
- IP67
- Other characteristics
- panel-mount
- Primary current
12 A, 16 A
- Voltage
400 V, 600 V
Description
RD24 Female panel mount connector, Contacts: 3+PE, unshielded, screw clamp, IP67, UL, ESTI+, VDE, central fixing
Connector design - Female panel mount connector
Version - Connector socket straight
Connector locking system - Central bolt
Termination - screw clamp
Degree of protection - IP67
Cross-sectional area - max. 2.50 mm² / AWG 14
Temperature range from/to - -40 °C / 100 °C
Mechanical operation - > 500 Mating cycles
Weight (g) - 22.64
Customs tariff number - 85369010
