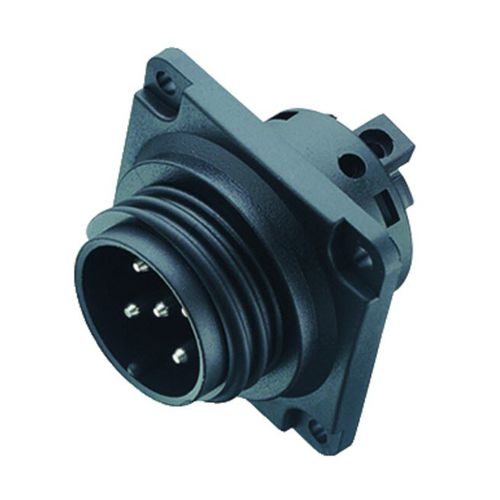

Electrical power supply connector 694 seriescircularmalepower
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- circular
- Connection type
- male
- Electrical characteristics
- power
- Material
- polyamide
- Protection class
- IP65
- Other characteristics
- panel-mount
- Primary current
3 A, 6 A, 20 A
- Voltage
125 V, 250 V, 400 V
Description
RD30 Male panel mount connector, Contacts: 4+PE, unshielded, screw clamp, IP65, ESTI+, VDE
Connector design - Male panel mount connector
Version - Connector pin straight
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP65
Cross-sectional area - 2.50 mm² / AWG 14
Temperature range from/to - -40 °C / 100 °C
Mechanical operation - > 500 Mating cycles
Weight (g) - 39.47
Customs tariff number - 85369010
Catalogs
General catalogue
954 Pages
