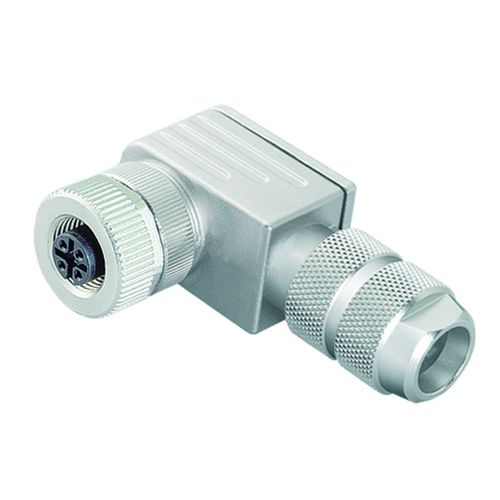

Data connector 825 serieselectrical power supplyelbowcircular
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- elbow, circular
- Connection type
- female, screw-locked
- Size
- M12
- Material
- polyamide
- Protection class
- IP67
- Other characteristics
- IEC, shielded
- Primary current
4 A
- Voltage
250 V
Description
M12-D Female angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL
Connector design - Female angled connector
Version - Connector socket angled
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP67
Cross-sectional area - max. 0.75 mm² / AWG 18
Cable outlet - 5.0-8.0 mm
Twistability - 90° (4 coding options)
Temperature range from/to - -40 °C / 85 °C
Mechanical operation - > 100 Mating cycles
Weight (g) - 69.75
Customs tariff number - 85369010
