- Franz Binder GmbH + Co. Elektrische Bauelemente KG

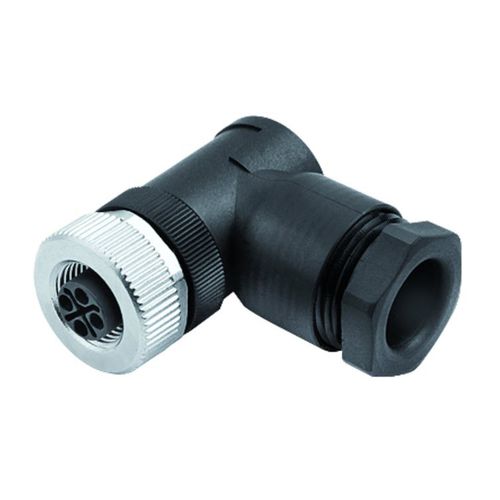

Data connector 814 serieselectrical power supplyelbowfemale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- elbow
- Connection type
- female, screw-locked
- Size
- M12
- Electrical characteristics
- power
- Material
- polyamide
- Protection class
- IP67
- Primary current
12 A
- Voltage
630 V
Description
M12-S Female angled connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE
Connector design - Female angled connector
Version - Connector socket angled
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP67
Cross-sectional area - max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule / AWG 16 with ferrule / AWG 14 without ferrule
Cable outlet - 8.0-10.0 mm
Twistability - 90° (4 coding options)
Temperature range from/to - -40 °C / 85 °C
Mechanical operation - > 100 Mating cycles
Weight (g) - 27.50
Customs tariff number - 85369010
