Data connector 815 serieselectrical power supplyfemalescrew-locked
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Connection type
- female, screw-locked
- Size
- M12
- Material
- polyamide
- Protection class
- IP67
- Primary current
4 A
- Voltage
250 V
Description

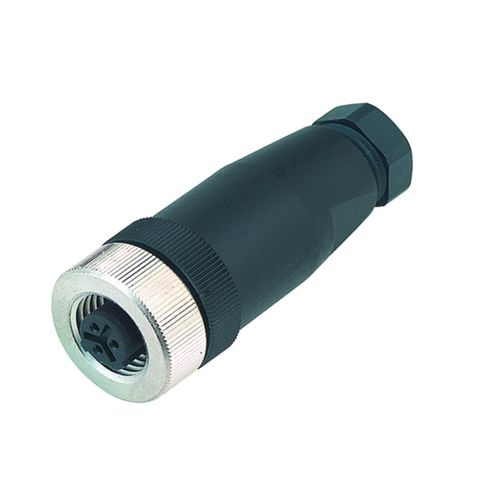

M12-US Female cable connector, Contacts: 2+PE, 4.0-6.0 mm, unshielded, screw clamp, IP67
Connector design - Female cable connector
Version - Connector socket straight
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP67
Cross-sectional area - max. 0.75 mm² / AWG 18
Cable outlet - 4.0-6.0 mm
Temperature range from/to - -25 °C / 85 °C
Mechanical operation - > 50 Mating cycles
Weight (g) - 26.38
Customs tariff number - 85369010
