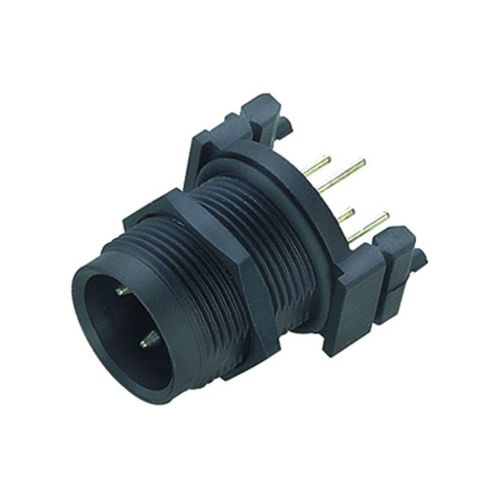

Data connector 714 serieselectrical power supplycircularmale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- male, screw, dip solder
- Size
- M18
- Material
- polyamide, PBT
- Protection class
- IP67
- Other characteristics
- panel-mount
- Primary current
16 A
- Voltage
250 V
Description
M18 Male panel mount connector, Contacts: 4, unshielded, THT, IP67, front fastened
Connector design - Male panel mount connector
Version - Connector pin straight
Connector locking system - screw
Termination - THT
Degree of protection - IP67
Cross-sectional area - 1.50 mm² / AWG 16
Temperature range from/to - -25 °C / 85 °C
Mechanical operation - > 50 Mating cycles
Weight (g) - 10.76
Customs tariff number - 85369010
