Data connector 870 serieselectrical power supplycircularmale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- male
- Protection class
- IP68
- Other characteristics
- panel-mount
- Primary current
6 A, 7 A, 10 A
- Voltage
300 V, 600 V
Description

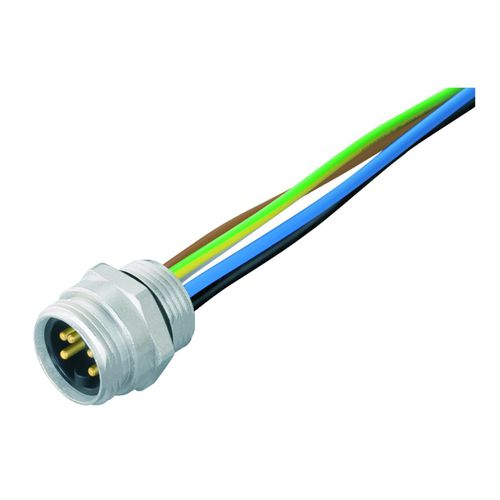

7/8" Male panel mount connector, Contacts: 2+PE, unshielded, single wires, IP68, UL, VDE, PG 11
Connector design - Male panel mount connector
Version - Connector pin straight
Connector locking system - screw
Termination - single wires
Degree of protection - IP68
Cross-sectional area - 0.75 mm² / AWG 18
Temperature range from/to - -25 °C / 85 °C
Mechanical operation - > 100 Mating cycles
Weight (g) - 36.87
Customs tariff number - 85369010
