- Franz Binder GmbH + Co. Elektrische Bauelemente KG

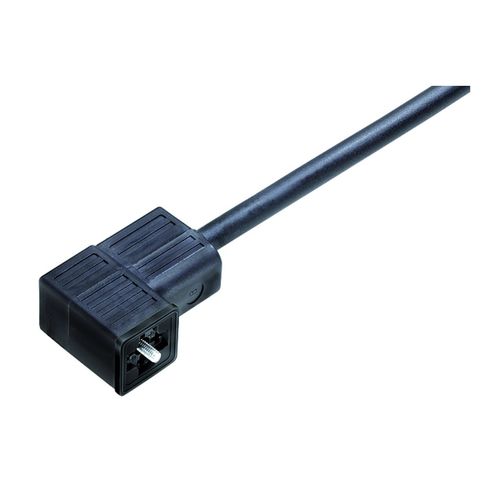

Data connector 230/C serieselectrical power supplyrectangularfemale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- rectangular
- Connection type
- female
- Material
- PBT
- Product applications
- for solenoid valves
- Protection class
- IP67
- Primary current
6 A
- Voltage
230 V
Description
Connector locking systemcentral bolt
Terminationmoulded on cable
Wire gauge (mm)0,75mm²
Wire gauge (AWG)21
Cable length3 m
Degree of protectionIP67
Mechanical operation> 50 Mating cycles
Upper limit temperature85 °C
Lower limit temperature-20 °C
Rated impulse voltage4000 V
Pollution degree3
Overvoltage categoryIII
Insulating material groupI
Volume resistivity≤ 5 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuSn (bronze)
Contact platingAg (silver)
Contact body materialPBT
Cable data
Sheath materialPUR
Single-lead structure3 x 0,75
Cable diameter5.9
Customs tariff number85444290
Weight (g)175.9
