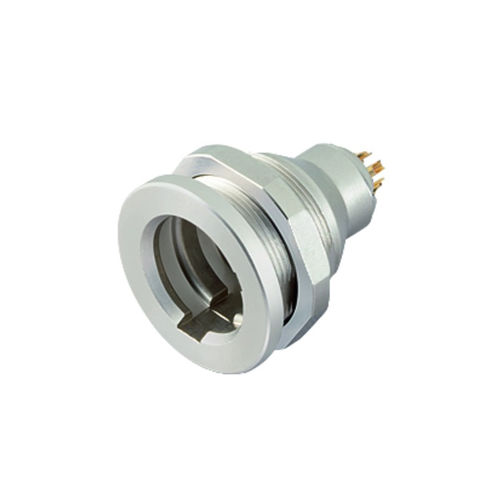

Electrical power supply connector 430 seriescircularmalepush-pull
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- circular
- Connection type
- male, push-pull
- Material
- polyamide, PBT
- Protection class
- IP40
- Other characteristics
- subminiature, panel-mount
- Primary current
1 A, 3 A, 4 A
- Voltage
125 V
Description
Push-Pull Male panel mount connector, Contacts: 3, unshielded, solder, IP40
Connector design - Male panel mount connector
Version - Connector pin straight
Connector locking system - Push-Pull
Termination - solder
Degree of protection - IP40
Cross-sectional area - 0.25 mm² / AWG 24
Temperature range from/to - -40 °C / 85 °C
Tightening torque screw nut - 0.8-1.0 Nm
Mechanical operation - > 500 Mating cycles
Weight (g) - 9.72
Customs tariff number - 85369010
