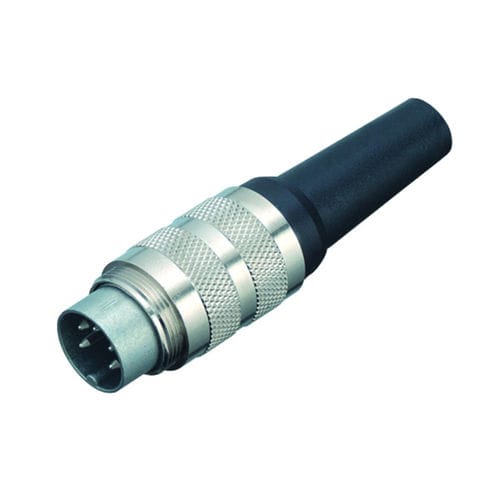

RF connector 581 seriesDINstraightcircular
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- DIN
- Shape
- straight, circular
- Connection type
- male
- Size
- M16
- Material
- PBT
- Protection class
- IP67
- Other characteristics
- shielded
- Primary current
3 A, 5 A, 6 A, 7 A
- Voltage
60 V, 250 V
Description
M16 IP40 Male cable connector, Contacts: 2, 4.0-6.0 mm, shieldable, solder, IP40
Connector design - Male cable connector
Version - Connector pin straight
Connector locking system - screw
Termination - solder
Degree of protection - IP40
Cross-sectional area - max. 0.75 mm² / AWG 18
Cable outlet - 4.0-6.0 mm
Temperature range from/to - -40 °C / 85 °C
Tightening torque pressing screw - 0.6-0.8 Nm
Mechanical operation - > 500 Mating cycles
Weight (g) - 24.61
Customs tariff number - 85369010
