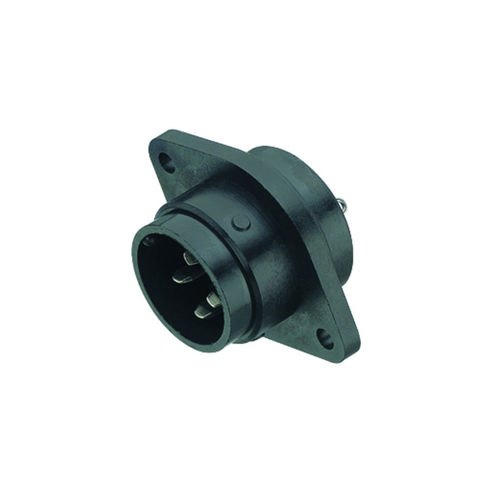

Electrical power supply connector 690 seriesDINcircularmale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- DIN
- Shape
- circular
- Connection type
- male, bayonet
- Electrical characteristics
- power
- Material
- PBT
- Protection class
- IP40
- Other characteristics
- panel-mount
- Primary current
5 A, 10 A
- Voltage
125 V, 250 V
Description
Bayonet Male panel mount connector, Contacts: 3, unshielded, solder, IP40
Connector design - Male panel mount connector
Version - Connector pin straight
Connector locking system - Bayonet
Termination - solder
Degree of protection - IP40
Cross-sectional area - 2.50 mm² / AWG 14
Temperature range from/to - -40 °C / 85 °C
Mechanical operation - > 50 Mating cycles
Weight (g) - 14.48
Customs tariff number - 85369010
